Product technical information

If you would like to access technical drawings and/or even more detailed product information, please create an account and request access. You can submit the request here. As soon as your account is approved, you can freely consult all technical drawings.

Our R&D team extensively tests the strength, resistance and fire safety of all our products in accordance with European directives. This is how we guarantee the safety and efficiency of each installation.

• Fire resistance tests: in accordance with AREI 104 (Belgian regulation) and DIN 4102-12 (German standard).
• Load testing (according to IEC61537 standard): the maximum useful interior space for cables (in cm²), the maximum allowable load per meter for a given support distance, the maximum bearing load (in kN) and the maximum racking torque (in Nm)
• Ballast study: investigation of necessary ballast for our shelters in different wind zones

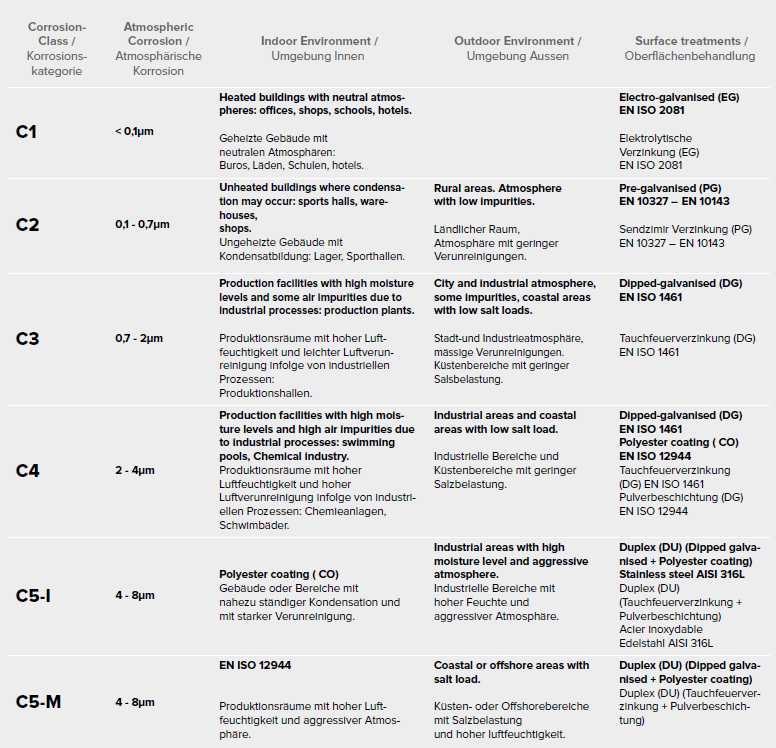

• Corrosion (according to EN ISO 12994 and IEC61537): depending on the atmosphere in which our systems are placed, the expected lifetime can be determined

• Salt spray test: investigation of time to red rust of our finishes EG, DG and UG

More information can be found in our catalog.

Trayco products are available in the following finishes:

• PG (Pre-Galvanised): sendzimir galvanised
• UG (Ultra Galvanised): Ultra Galva
• DG (Dipped Galvanised): hot-dip galvanised
• CO (Polyester Coated) : polyester powder coating
• EG (Electro Galvanised) : electrolitically galvanised
• SS316 (Stainless steel AISI316L) : stainless steel AISI316L
• SS304 (Stainless steel AISI304L) : stainless steel AISI304L
• DU (Duplex): duplex
• AL (Aluminum): aluminum
• PA (Polyamide): polyamide
• PAG (Polyamide reinforced with fiber glass): Polyamide reinforced with fiber glass
