Wire Mounting Y loop + Clip

WM-YLO-SNAP

Wire Mounting Y loop + Clip

Name: Trayco
Address: Bedrijvenpark Coupure 5A, Oudenaarde, Oost-Vlaanderen, 9700, Belgium
Telephone: +32 (0)55 23 29 90

WM-YLO-SNAP

Koppelen met WM

Requesting a quote

Catalog

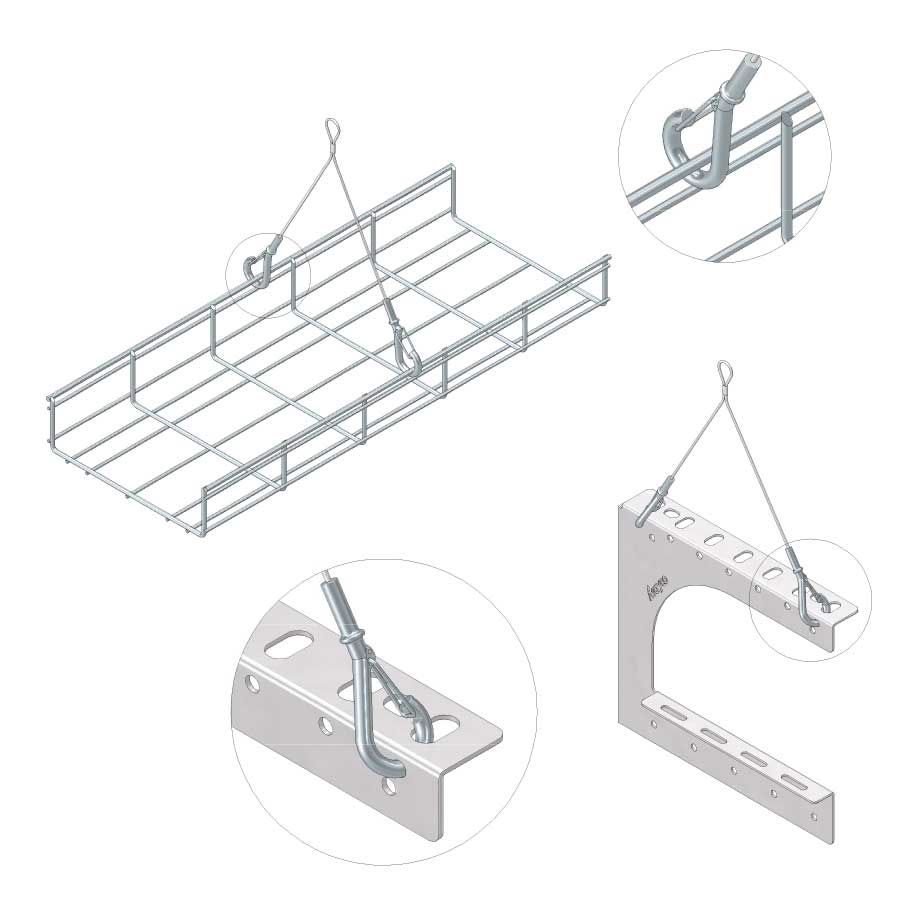

Technical info Assembly Accessories and options

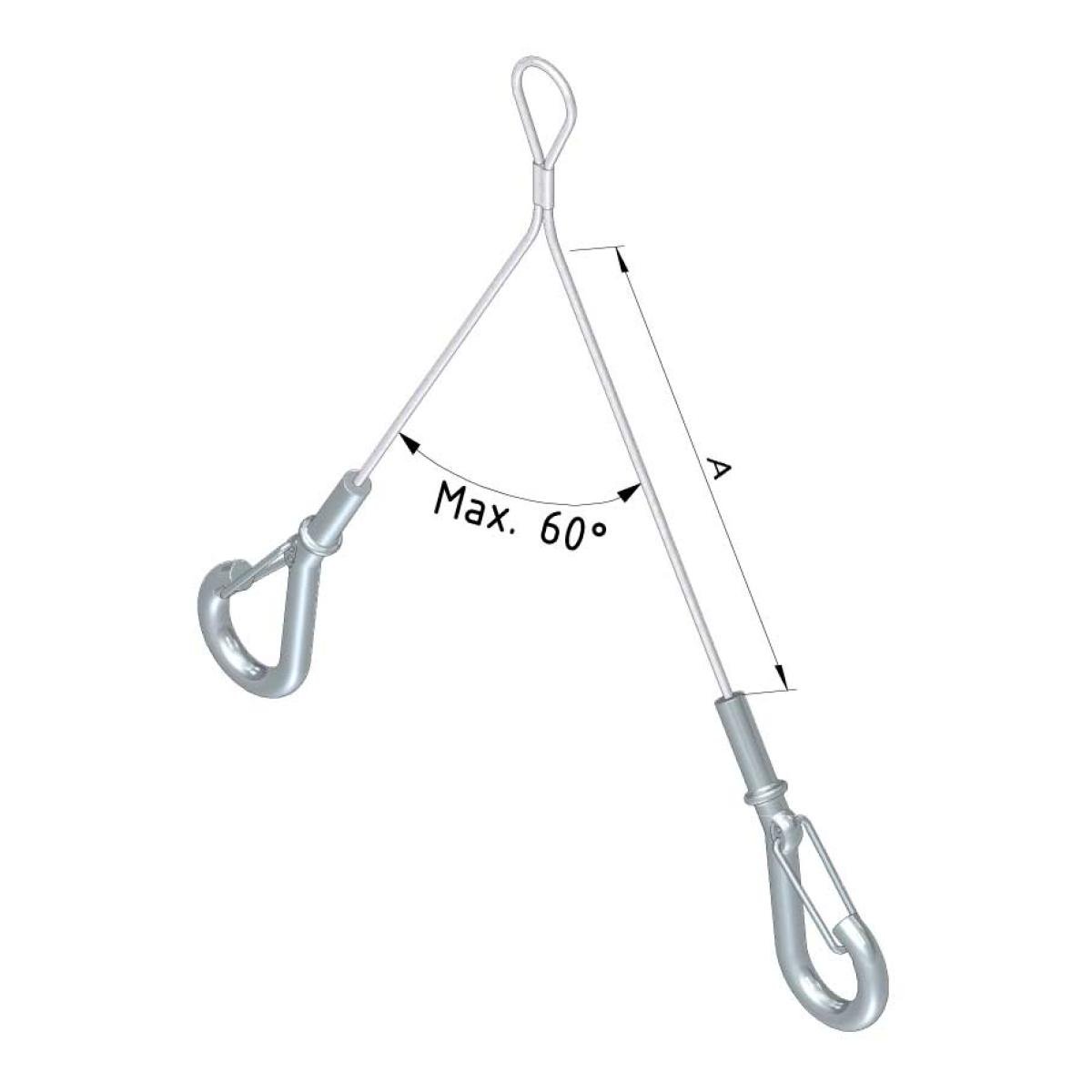

	SKU	Article code	Finishing	Dimension A	F (kN)	Packaging
	12498	WM-YLO-SNAP150-20-EG	EG	150	0.45	10	Default
EAN 5415129024861 Assembly Workload Norm - Safe workload 0.45 Max. torque - Additional information Product features Koppelen met WM Equipotential connection - EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Electrolytically galvanized (EN ISO 2081) EG (electrogalvanized) Electrolytically galvanized products are mostly used in places where limited chemical contamination is likely, for example, in off ces, industrial buildings, covered parking lots, etc. Electrogalvanizing diﬀ ers from hot-dip galvanizing in that the zinc coating, in this case, is built up by electrolysis. With this technique, there are no thermal inﬂ uences on the steel, so no layers of alloy will form. Also, the coating thicknesses of 6-8µm (micron) are more limited compared to hot-dip galvanizing. Prior to the galvanizing, the steel sheet goes through several pre-treatment steps so as to ensure optimal adhesion (degreasing steps, pickling, a brief acid dip, multiple rinsing,….) After the galvanizing proper, the zinc coating receives a passivating- and dichromate coat, followed by a rinsing with demi-water. The advantages of electrogalvanizing are, among other things: no thermal deformation (so ideal for assembly parts), an attractive, uniform and perfectly smooth, high-gloss f nish with good electrical conductivity, no runs in the paintwork or zinc jags.
	12499	WM-YLO-SNAP300-20-EG	EG	300	0.45	10	Default
EAN 5415129024878 Assembly Workload Norm - Safe workload 0.45 Max. torque - Additional information Product features Koppelen met WM Equipotential connection - EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Electrolytically galvanized (EN ISO 2081) EG (electrogalvanized) Electrolytically galvanized products are mostly used in places where limited chemical contamination is likely, for example, in off ces, industrial buildings, covered parking lots, etc. Electrogalvanizing diﬀ ers from hot-dip galvanizing in that the zinc coating, in this case, is built up by electrolysis. With this technique, there are no thermal inﬂ uences on the steel, so no layers of alloy will form. Also, the coating thicknesses of 6-8µm (micron) are more limited compared to hot-dip galvanizing. Prior to the galvanizing, the steel sheet goes through several pre-treatment steps so as to ensure optimal adhesion (degreasing steps, pickling, a brief acid dip, multiple rinsing,….) After the galvanizing proper, the zinc coating receives a passivating- and dichromate coat, followed by a rinsing with demi-water. The advantages of electrogalvanizing are, among other things: no thermal deformation (so ideal for assembly parts), an attractive, uniform and perfectly smooth, high-gloss f nish with good electrical conductivity, no runs in the paintwork or zinc jags.
