Supporting Profile

SP41-21-6

+ 1 photos

Supporting Profile

Name: Trayco
Address: Bedrijvenpark Coupure 5A, Oudenaarde, Oost-Vlaanderen, 9700, Belgium
Telephone: +32 (0)55 23 29 90

SP41-21-6

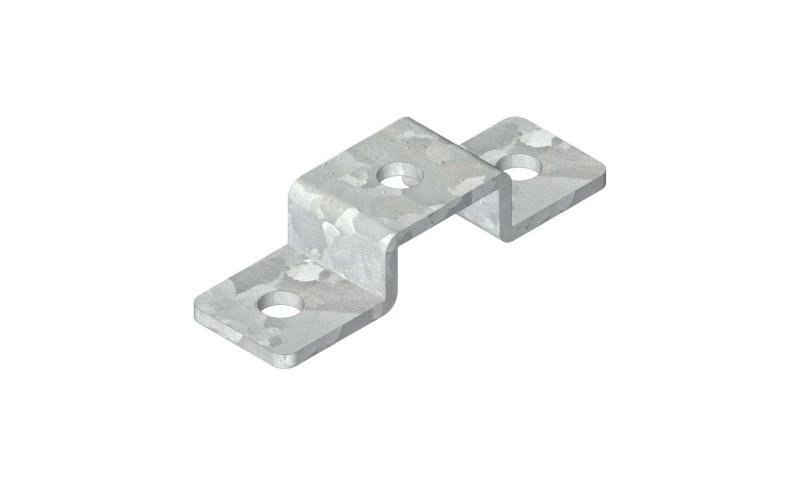

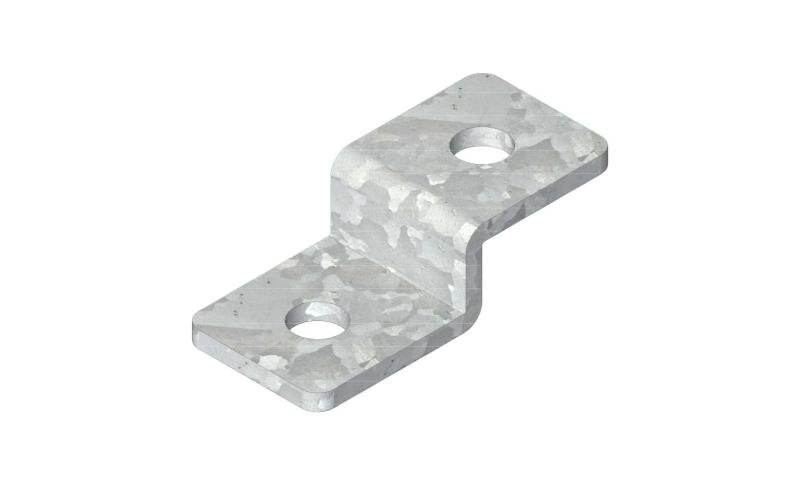

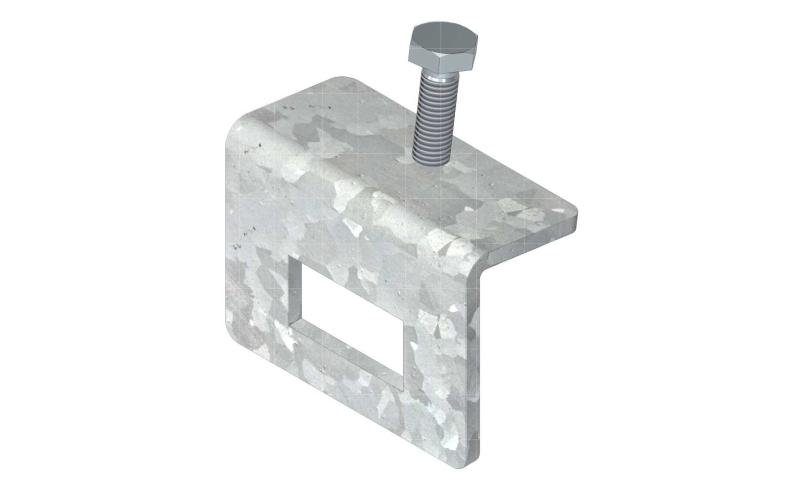

Connect with CP
Coated finishing available on demand. RAL colour code to be confirmed on your order.

Requesting a quote

Technical Data Sheet

Catalog

Technical info Accessories and options

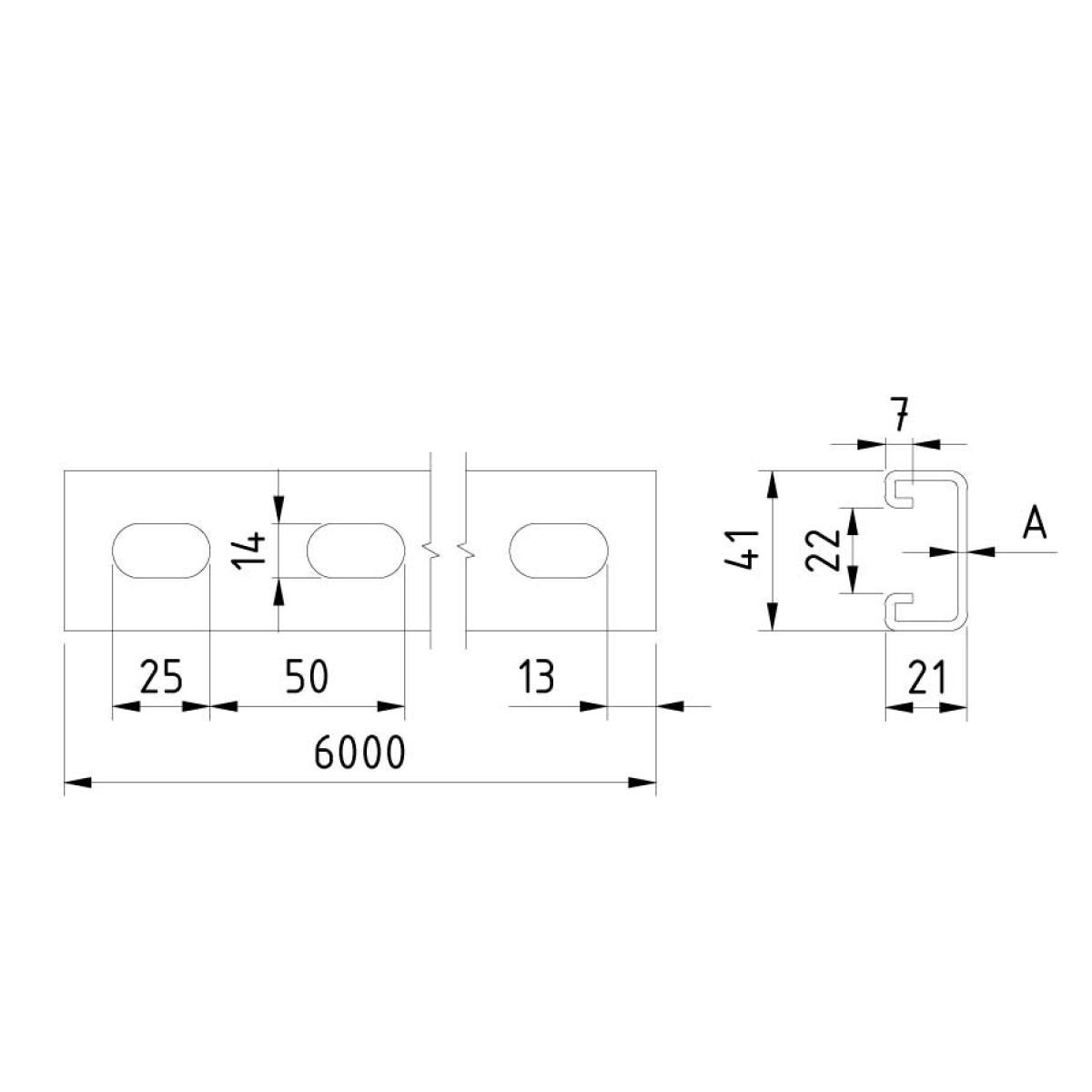

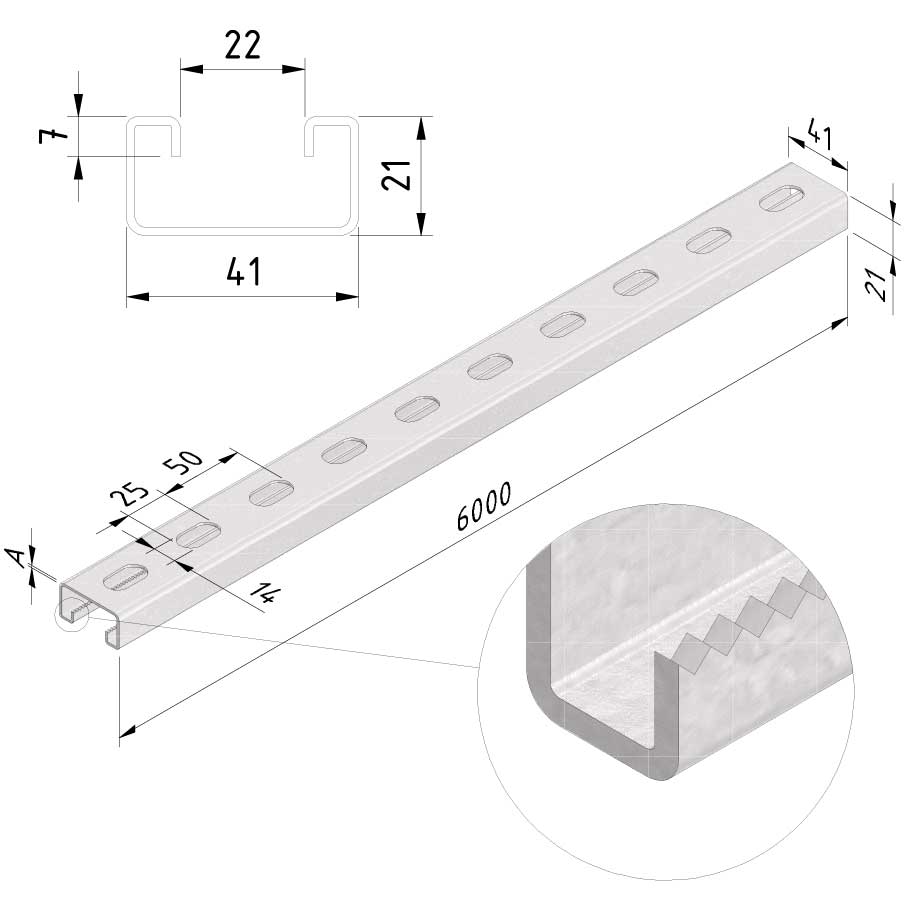

	SKU	Article code	Finishing	Dimension A	Packaging
	10300	SP41-21-25-6PG	PG	2	6	Default
EAN 5415129003002 Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Connect with CP Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.
	18417	SP41-21-25-6UG	UG	6000	6	Default
EAN 5415129082106 Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Connect with CP Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
