Steel Deck Bracket

SDB

+ 2 photos

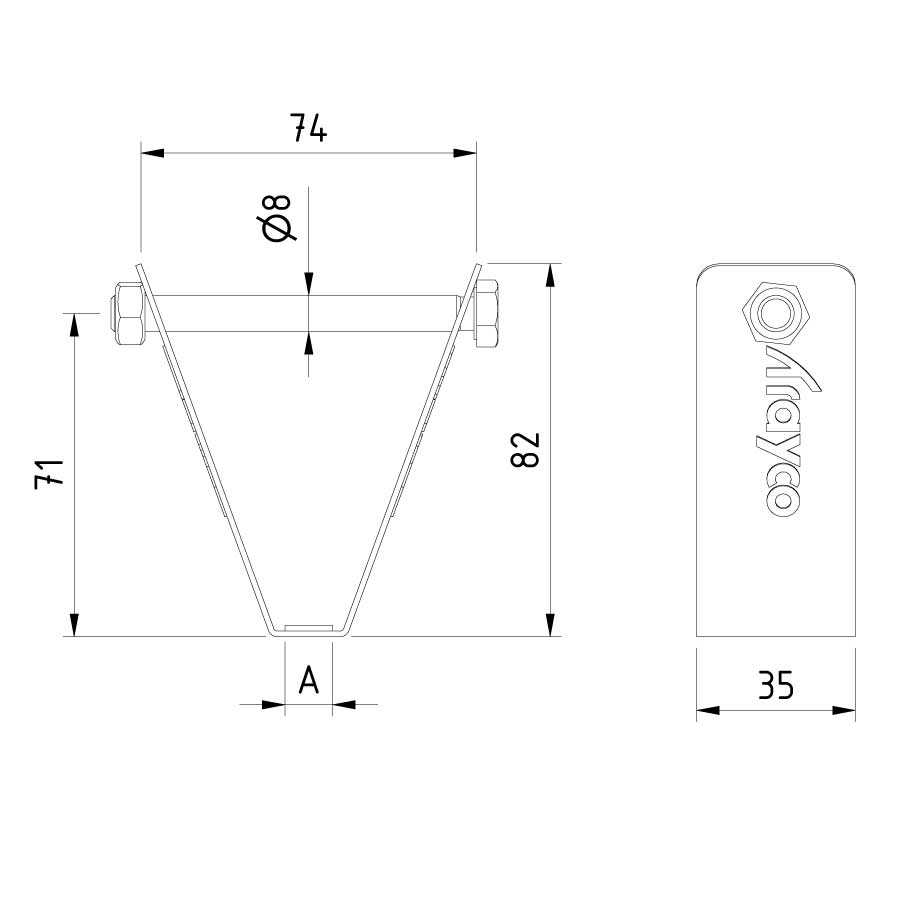

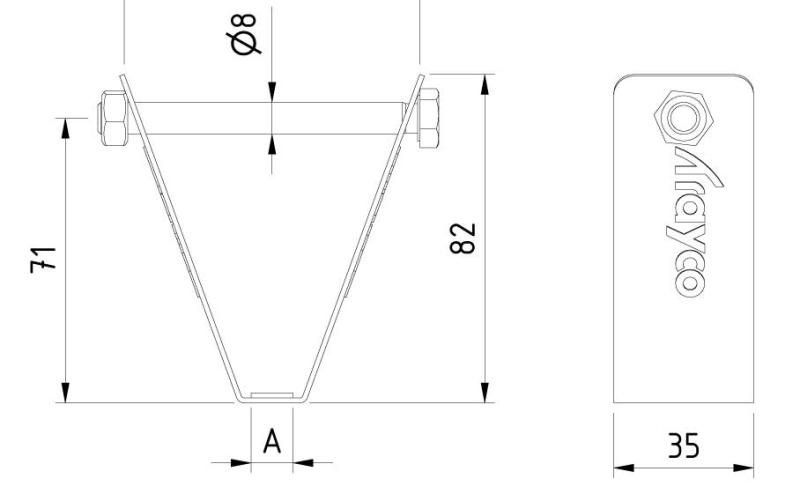

Steel Deck Bracket

Name: Trayco
Address: Stroomlaan 16, Oudenaarde, Oost-Vlaanderen, 9690, Belgium
Telephone: +32 (0)55 23 29 90

SDB

Connect with ROD
Coated finishing available SDB-M10 on demand. RAL colour code to be confirmed on your order.

Requesting a quote

Technical Data Sheet

Catalog

Technical info Assembly Accessories and options

	SKU	Article code	Finishing	F (kN)	Packaging

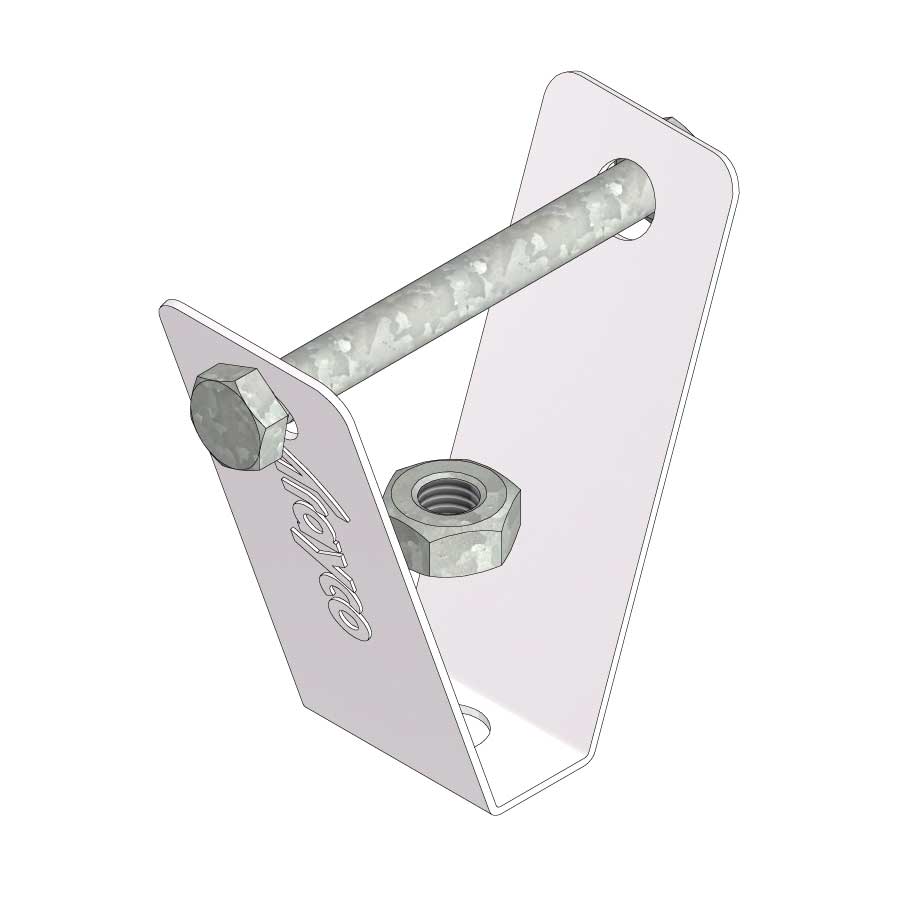

	19030	SDB-M10-UG	UG	1.8	10	Default
EAN 5415129088139 Workload Norm IEC61537 Safe workload 1.8 Max. torque - Additional information Product features Connect with ROD Coated finishing available SDB-M10 on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!

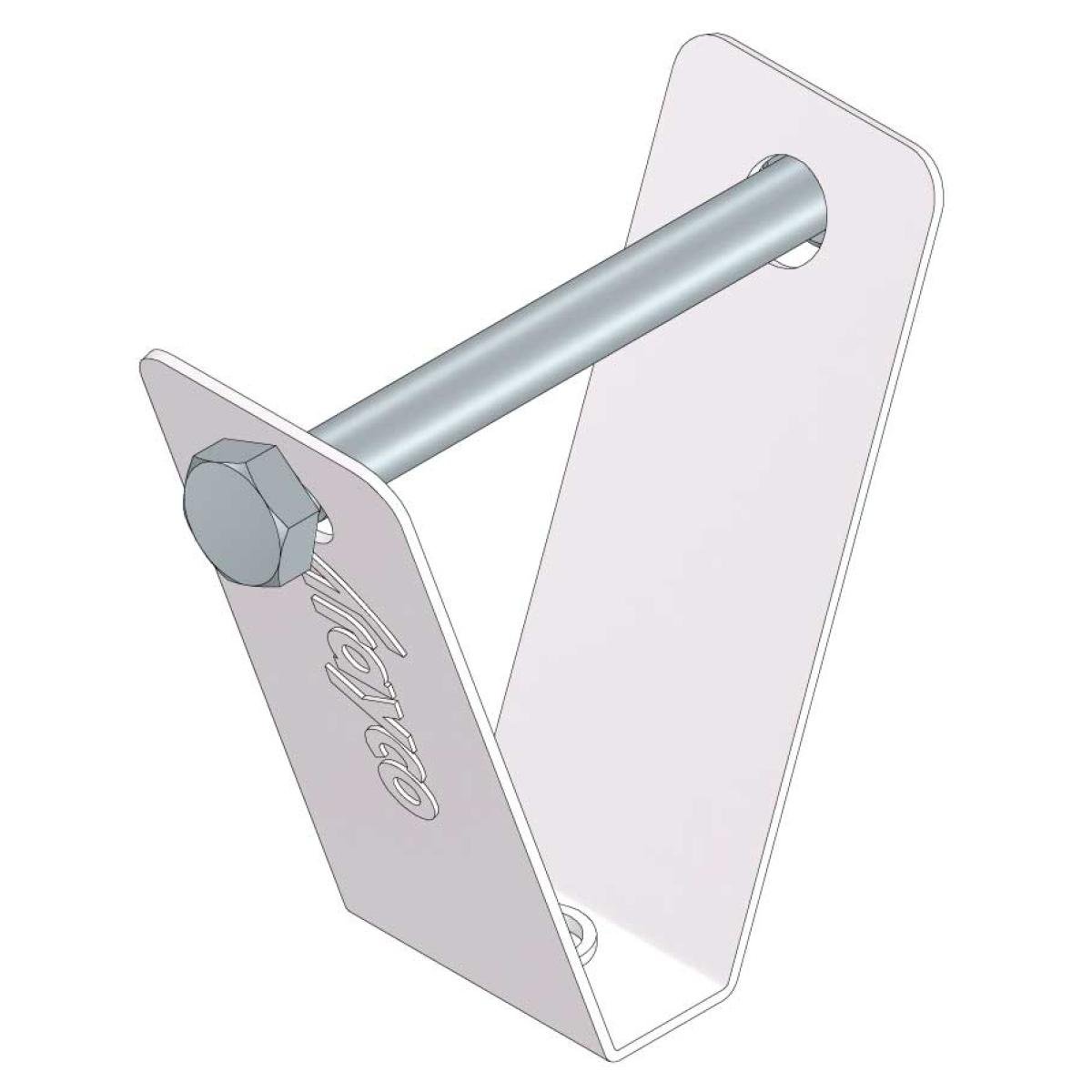

	17185	SDB-UG	UG	1.8	10	Default
EAN 5415129069985 Workload Norm IEC61537 Safe workload 1.8 Max. torque - Additional information Product features Connect with ROD Coated finishing available SDB-M10 on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
