Mesh Tray Fix. Bracket Omega

MT-FWSBO

+ 3 photos

Mesh Tray Fix. Bracket Omega

Name: Trayco
Address: Bedrijvenpark Coupure 5A, Oudenaarde, Oost-Vlaanderen, 9700, Belgium
Telephone: +32 (0)55 23 29 90

MT-FWSBO

Coated finishing available on demand. RAL colour code to be confirmed on your order.

Requesting a quote

Technical Data Sheet

Catalog

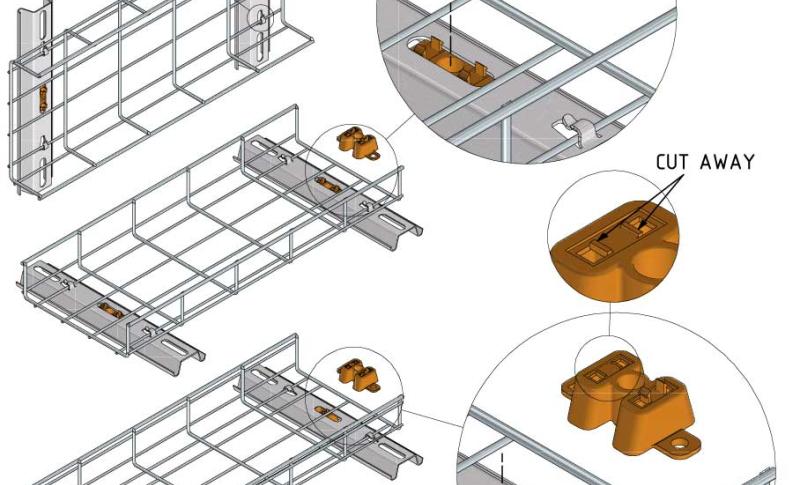

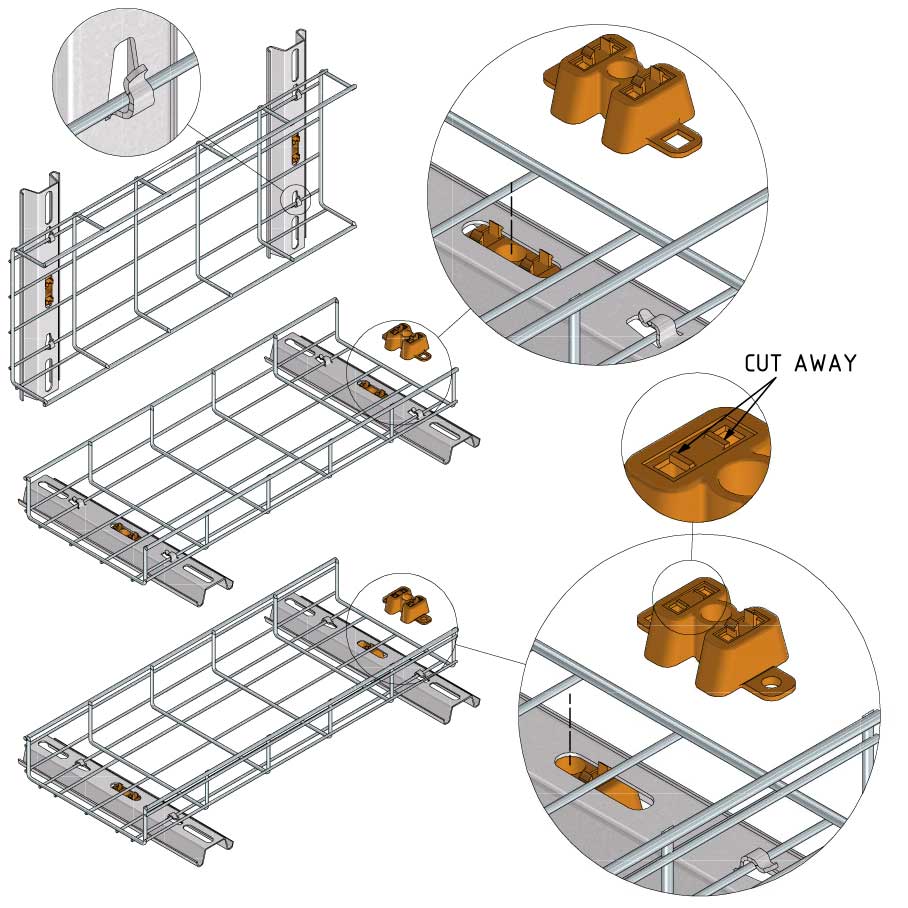

Technical info Assembly Accessories and options

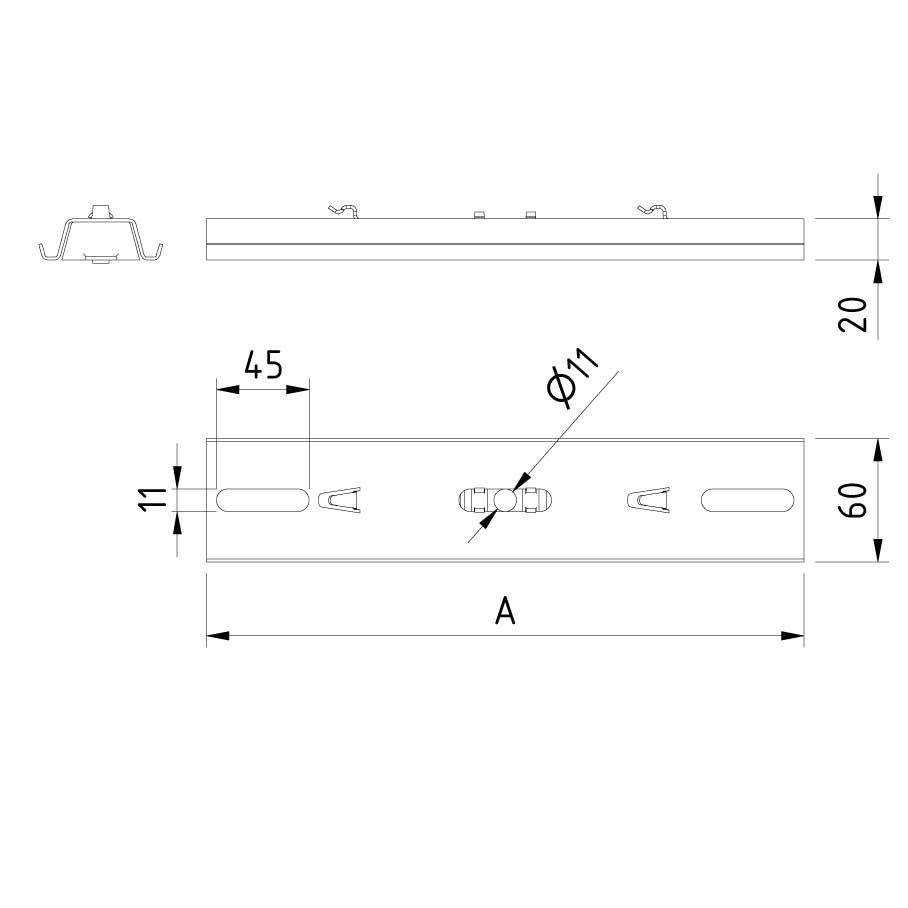

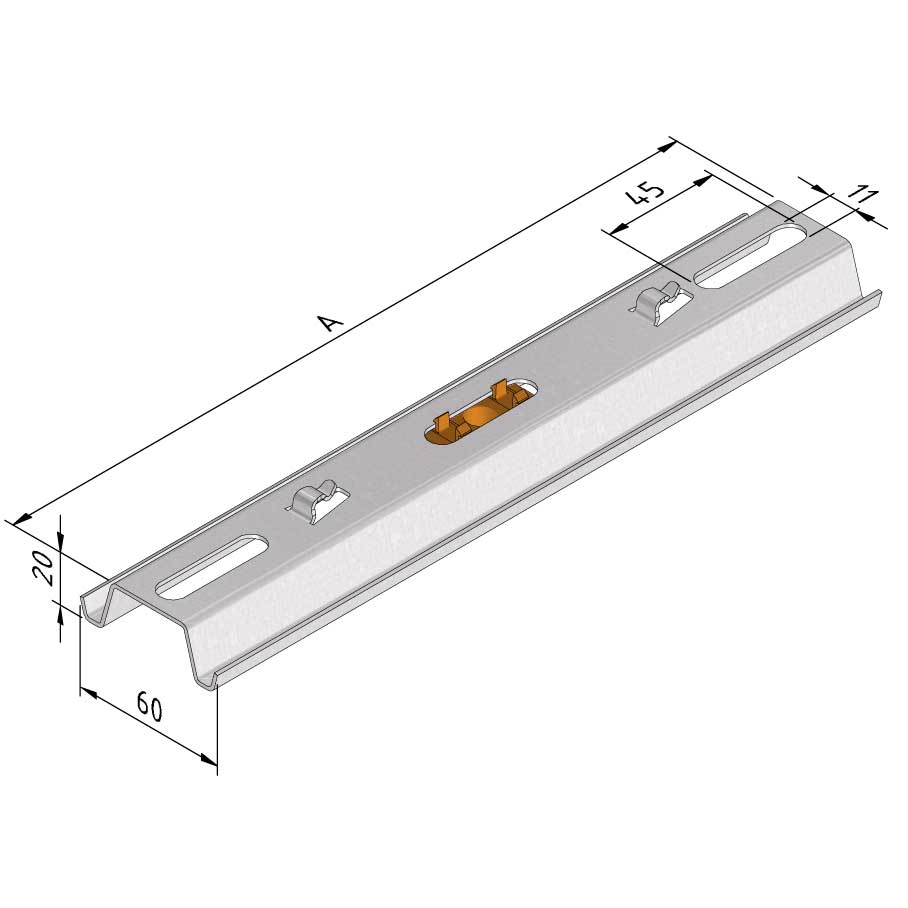

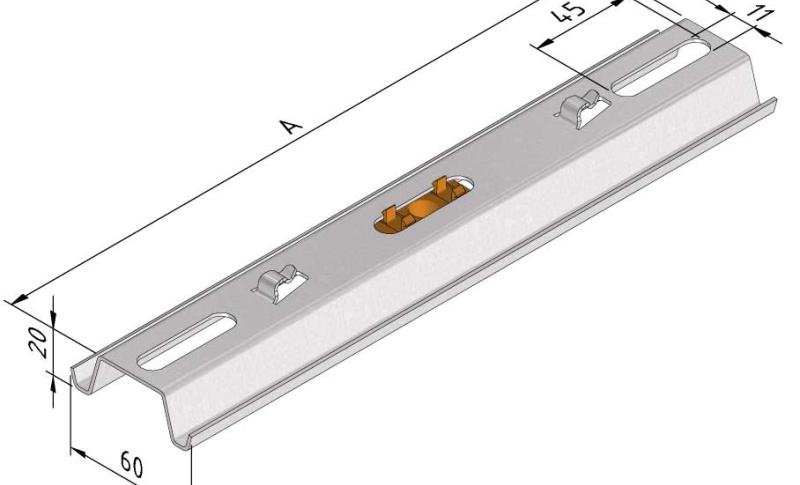

	SKU	Article code	Finishing	Dimension A	Packaging
	17153	MT-FWSBO-150-UG	UG	220	30	Default
EAN 5415129069664 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
	17154	MT-FWSBO-200-UG	UG	290	40	Default
EAN 5415129069671 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
	17155	MT-FWSBO-300-UG	UG	390	40	Default
EAN 5415129069688 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
	17156	MT-FWSBO-400-UG	UG	490	20	Default
EAN 5415129069695 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
	17157	MT-FWSBO-500-UG	UG	590	20	Default
EAN 5415129069701 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
	17158	MT-FWSBO-600-UG	UG	690	10	Default
EAN 5415129069718 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Additional information Product features Coated finishing available on demand. RAL colour code to be confirmed on your order. Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing ULTRA GALVA (UG) This a high-performant metallic coating which offers an optimum surface protection in a wide variety of agressive and demanding environments, indoor as well as outdoor. The unique alloy of small amounts of magnesium and/or aluminium in the zinc bath provides ULTRA protection with a self-healing effect. Whilst zinc is essential for cathodic protection, magnesium prevents red rust. The passivation layer that comes on top, creates a seal that slows down the first traces of white rust. ULTRA GALVA offers a number of advantages compared to the traditional hot dip finishing. - the passivation layer offers a superior protection level. Hence, ULTRA GALVA, being cathodical, is self-healing in case of scratches, edges or perforations. Compared to hot dip, the articles remain very straight, no deflections appear nor flux or dull spots/ashes - ULTRA GALVA can conveniently be cold-processed without any risk on flakes because of the perfect adhesion of the coating to the metal - no zinc pins appear which enables one to install cables in a fast way avoiding any risk on damages to cables nor injuries of workers - thanks to the longer life span, ULTRA GALVA does not require ongoing maintenance nor post painting actions - three times less zinc is being applied compared to hot dip finishing - there is hence a lower impact on natural ressources as well as less pollution -on top, its production process generates less CO2 emission and ULTRA GALVA is 100% recyclable. ULTRA GALVA is hence a vary valuable environmentally friendly alternative for the traditional stainless steel and hot-dip finishing!
