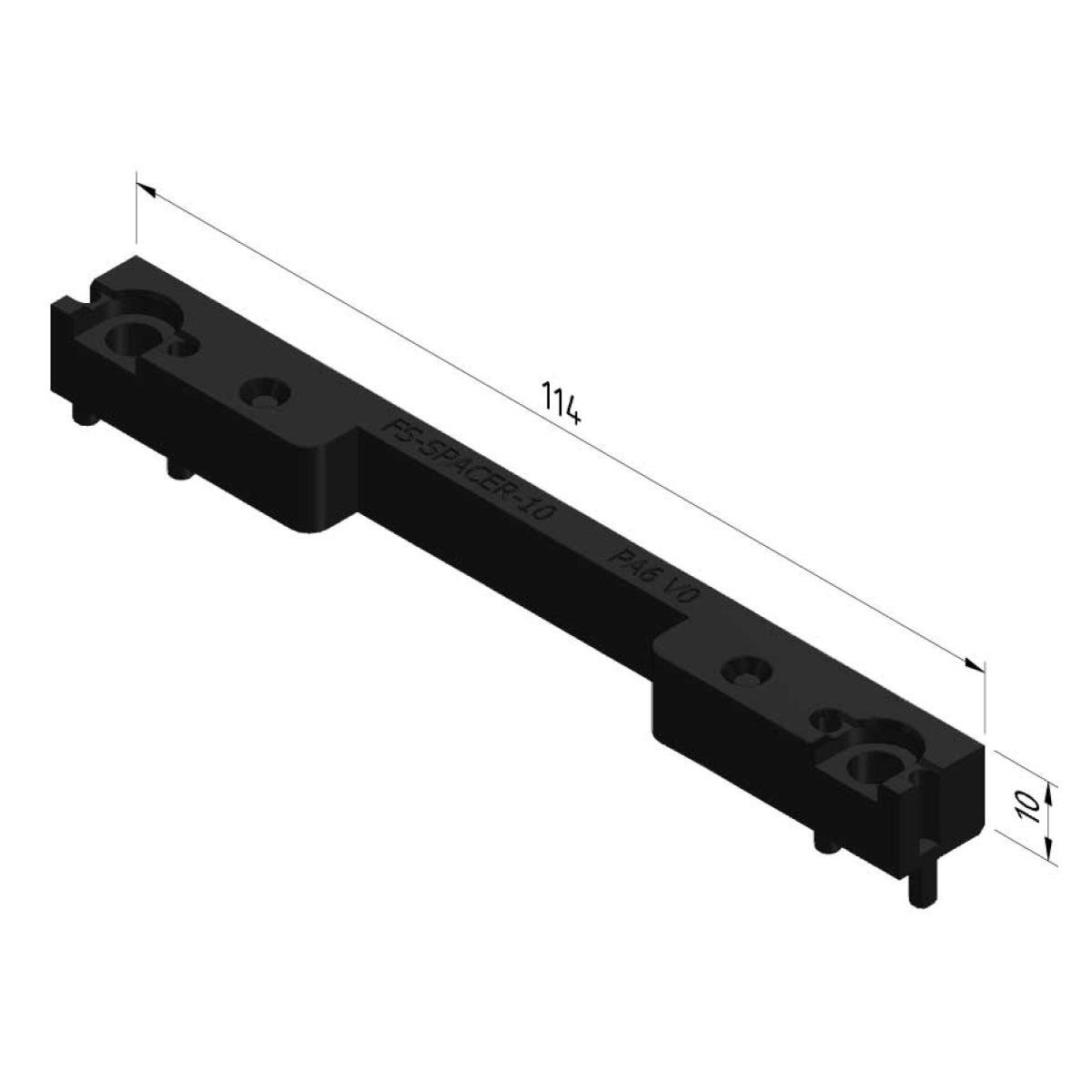

Spacer 10mm

SPACER

+ 2 photos

Material: PA6 V0 (flame retardant)

Requesting a quote
Technical Data Sheet
Catalog
Technical info Assembly Accessories and options
SKU Article code Finishing Packaging
16032
FS-SPACER-10-PA9011
PA9011
4
Default
EAN
5415129058668

Assembly

Workload

Norm
Volgens EN50085
Safe workload
-
Max. torque
-

Additional information

Product features
Material: PA6 V0 (flame retardant)

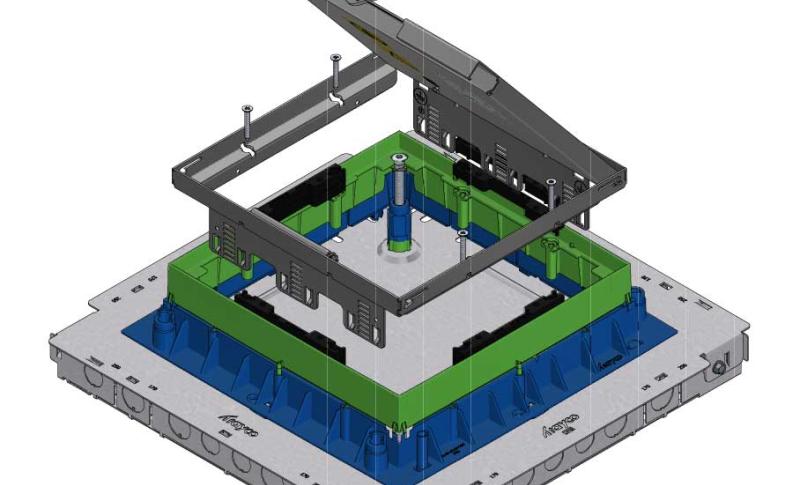

The spacers are used to raise INOX service units with a straight upright edge (FS-HC-SQ-260-SS304 / FS-TF(13)-SQ-260-SS304 / FS-BC(13)-SQ-260-WP-SS304).

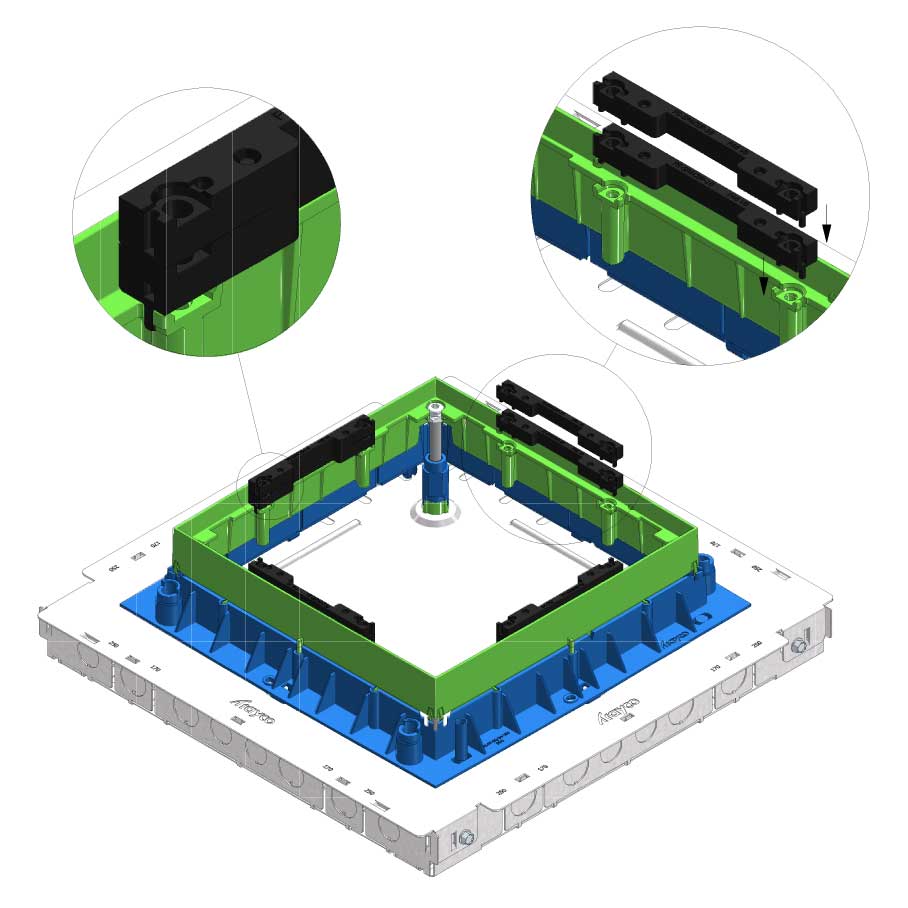

They are placed between the green adjustable frame and the service unit.
Service unit and spacers are simultaneously fixed on the green adjustment frame.
Use 4 or 8 spacers to obtain a stable support (see table).
The spacers can be interlocked.
Depending on the height of the chosen floor box, the number of fixed frames and the total floor height, one can deduce from the table whether and how many spacers one needs per service unit.
Equipotential connection
-
EC declaration of conformity
We declare that our products are in conformity with:
- the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage)
- the applicable national standards and technical specifications: CEI IEC 61537

Technical documentation is available at the manufacturer location.

(On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.)
The spacers are used to raise INOX service units with a straight upright edge (FS-HC-SQ-260-SS304 / FS-TF(13)-SQ-260-SS304 / FS-BC(13)-SQ-260-WP-SS304). They are placed between the green adjustable frame and the service unit. Service unit and spacers are simultaneously fixed on the green adjustment frame. Use 4 or 8 spacers to obtain a stable support (see table). The spacers can be interlocked. Depending on the height of the chosen floor box, the number of fixed frames and the total floor height, one can deduce from the table whether and how many spacers one needs per service unit.

Assembly
