Apparatus cup module 45

ACC-AC-HO-45

+ 2 photos

Apparatus cup module 45

ACC-AC-HO-45

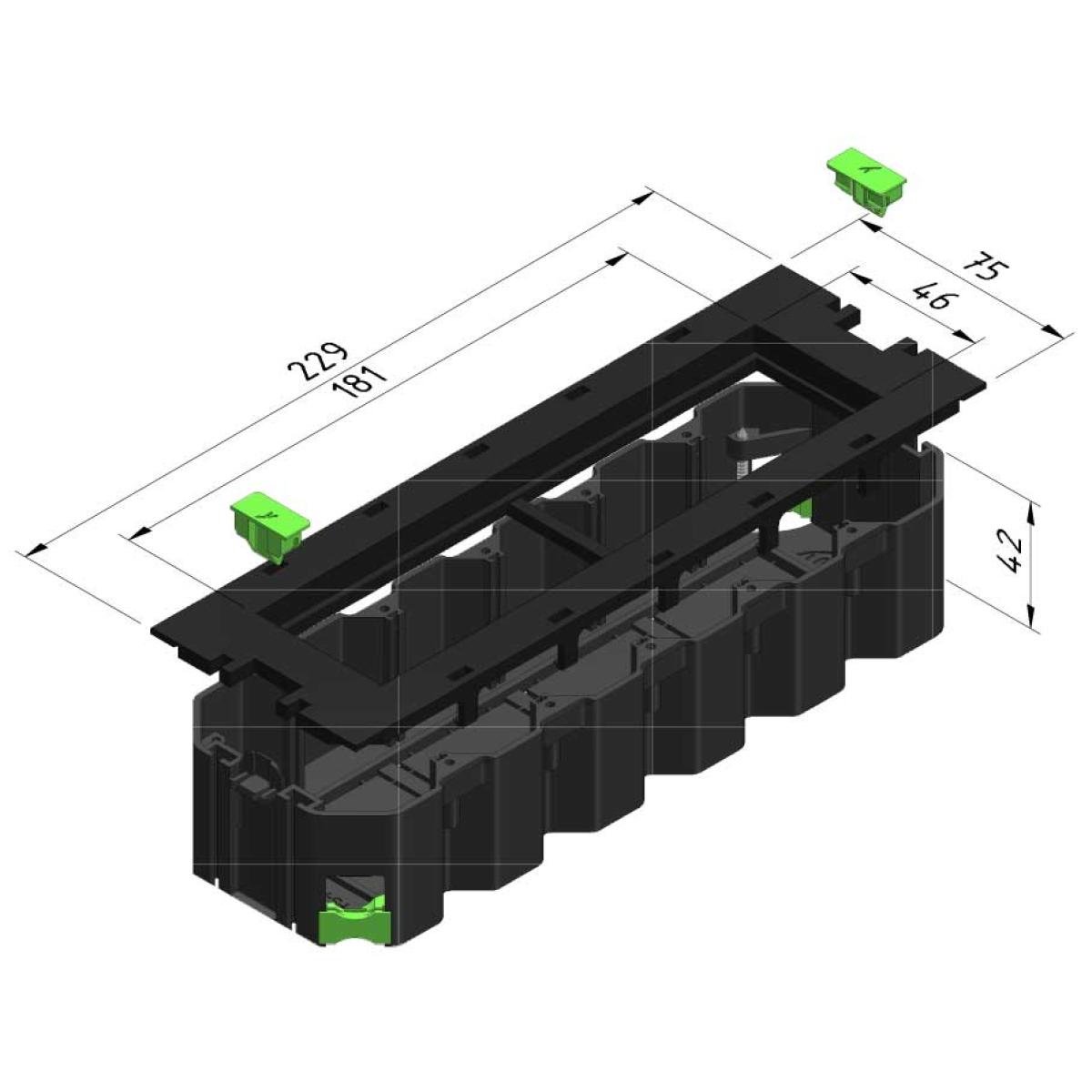

Apparatus cup + strain relief (2x) + seal (2x) + cover plate module 45
Material: PA6 V0 (flame retardant)
Colour: RAL9011 (black)

Requesting a quote

Technical Data Sheet

Catalog

Technical info Assembly Accessories and options

	SKU	Article code	Finishing	Packaging
	15646	FS-AC-HO-260-4-45-PA9011	PA9011	10	Default
EAN 5415129054837 Assembly Workload Norm Volgens EN50085 Safe workload - Max. torque - Additional information Product features Apparatus cup + strain relief (2x) + seal (2x) + cover plate module 45 Material: PA6 V0 (flame retardant) Colour: RAL9011 (black) EN50085 compliant. Fully clippable in the bottom frame (both INOX and plastic). Pre-assembled strain relievers for faster installation. Can be clicked in at different heights in the bottom frame. The product has a closed bottom with knockouts for the mounting of CAT6 data cables. Supplied in combination with cover plate for module 45 (FS-CPL-4-45-PA9011). For a maximum of 4 click-outlets of type Module 45. Applicable with: HC-CE-SQ-260-PA, HC-(PL-)SQ-260-SS, HC-CE-(PL-)SQ-260-SS, TF-SQ-260-WP, HC-CE-SQ-260-RF-PA, HC-CE-SQ-260-RF-SS. Equipotential connection - EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.)

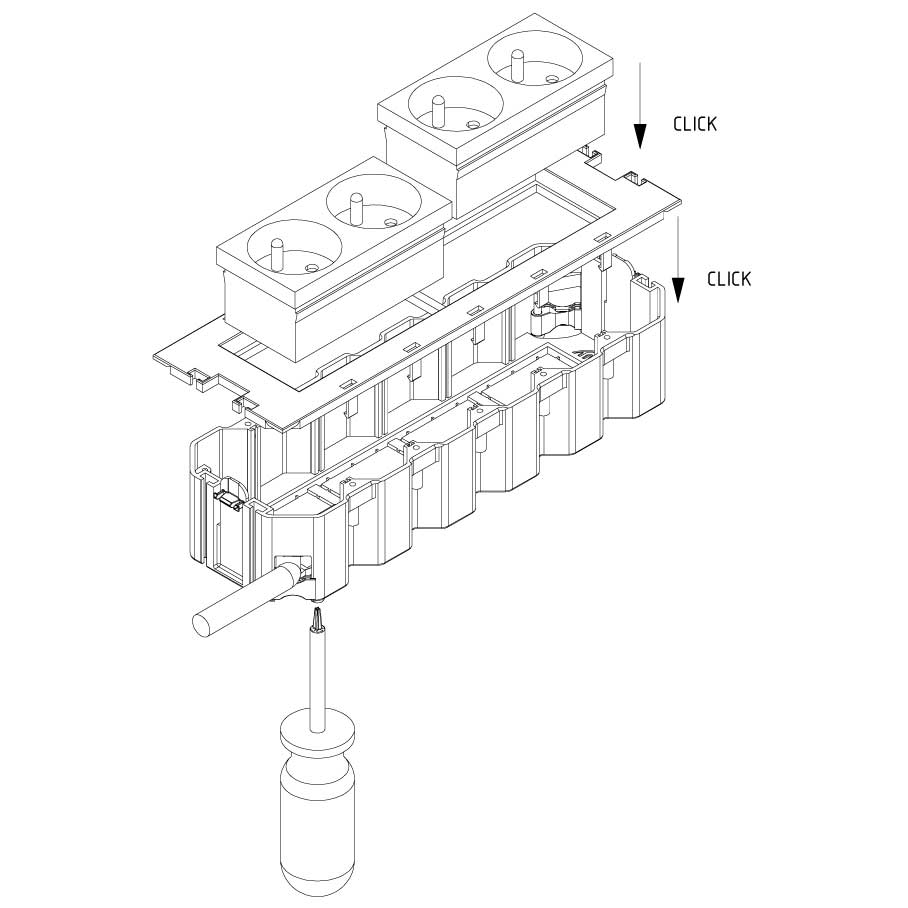

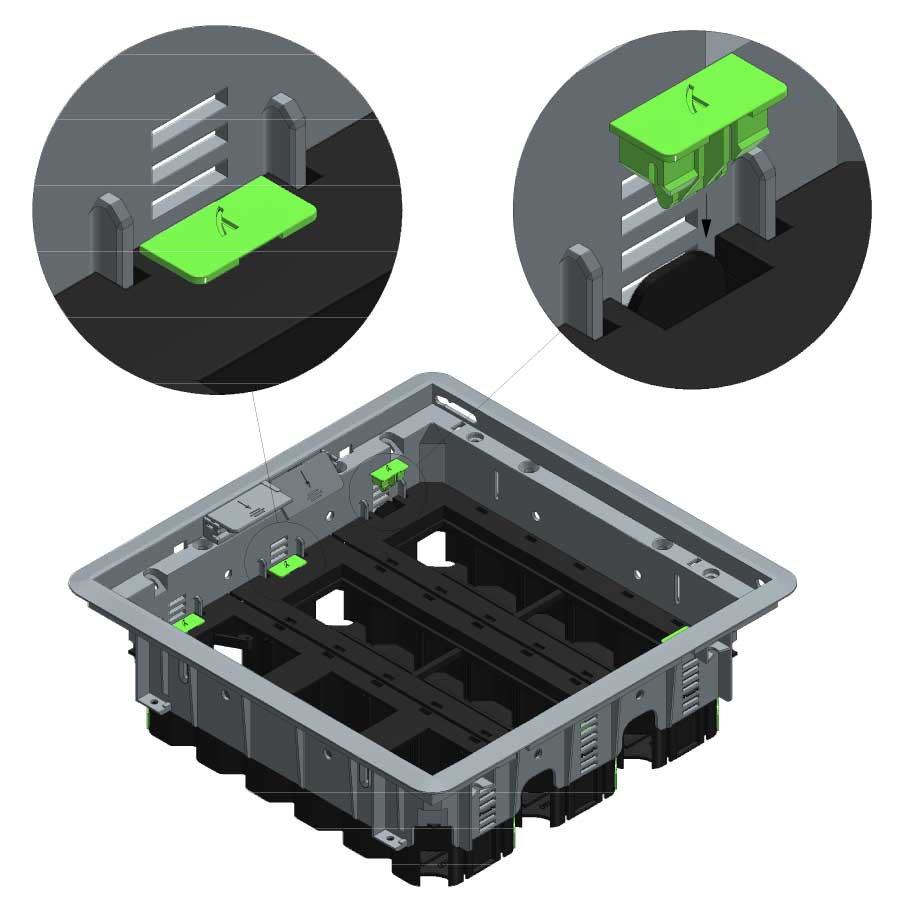

EN50085 compliant. Fully clippable in the bottom frame (both INOX and plastic). Pre-assembled strain relievers for faster installation. Can be clicked in at different heights in the bottom frame. The product has a closed bottom with knockouts for the mounting of CAT6 data cables. Supplied in combination with cover plate for module 45 (FS-CPL-4-45-PA9011). For a maximum of 4 click-outlets of type Module 45. Applicable with: HC-CE-SQ-260-PA, HC-(PL-)SQ-260-SS, HC-CE-(PL-)SQ-260-SS, TF-SQ-260-WP, HC-CE-SQ-260-RF-PA, HC-CE-SQ-260-RF-SS.
