Apparatus cup low height

ACC-AC-LOW

+ 1 photos

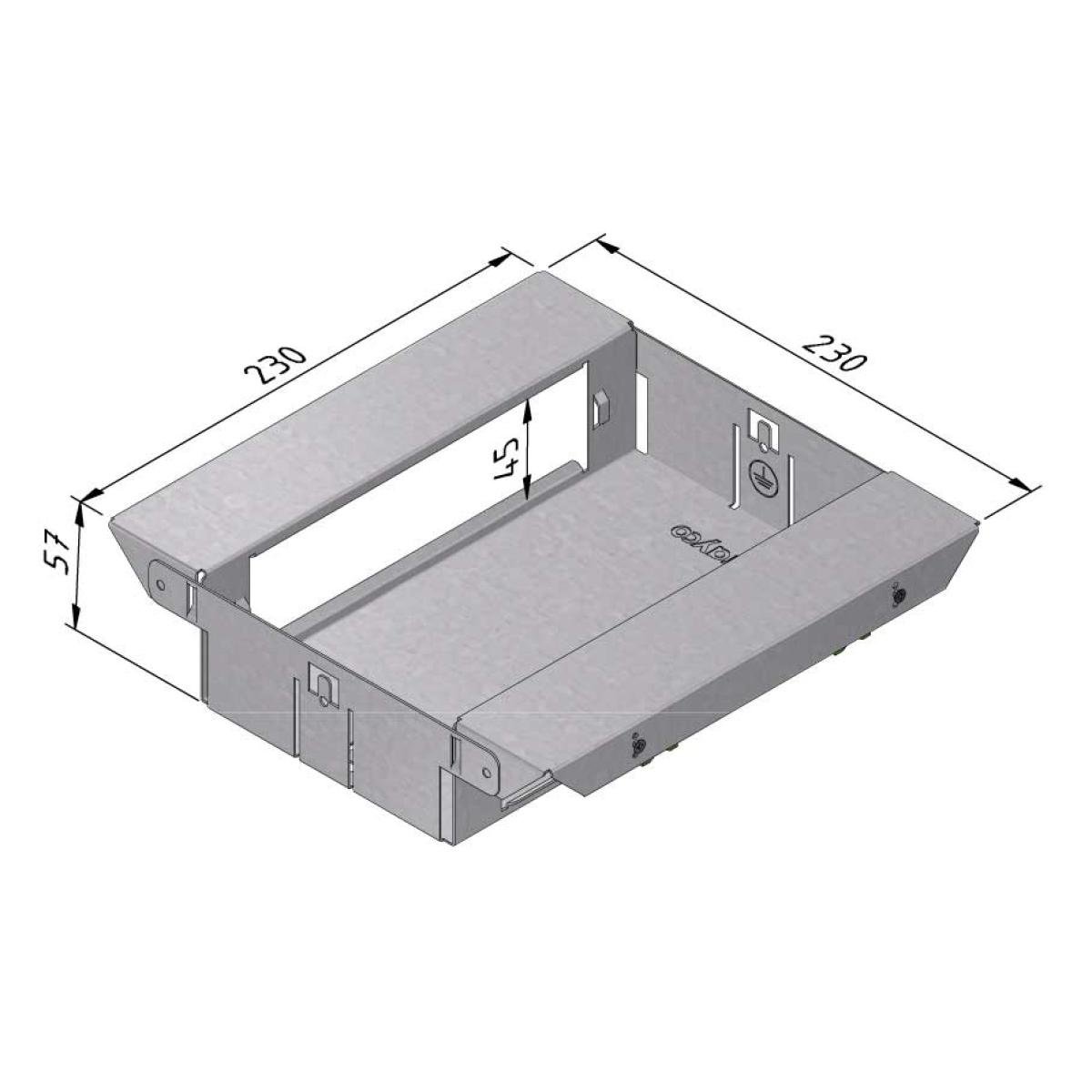

Apparatus cup low height

ACC-AC-LOW

Apparatus cup + strain relief (4x) + fixation screws (4x)
Material: sendzimir
Applications with low installation depths

Requesting a quote

Technical Data Sheet

Catalog

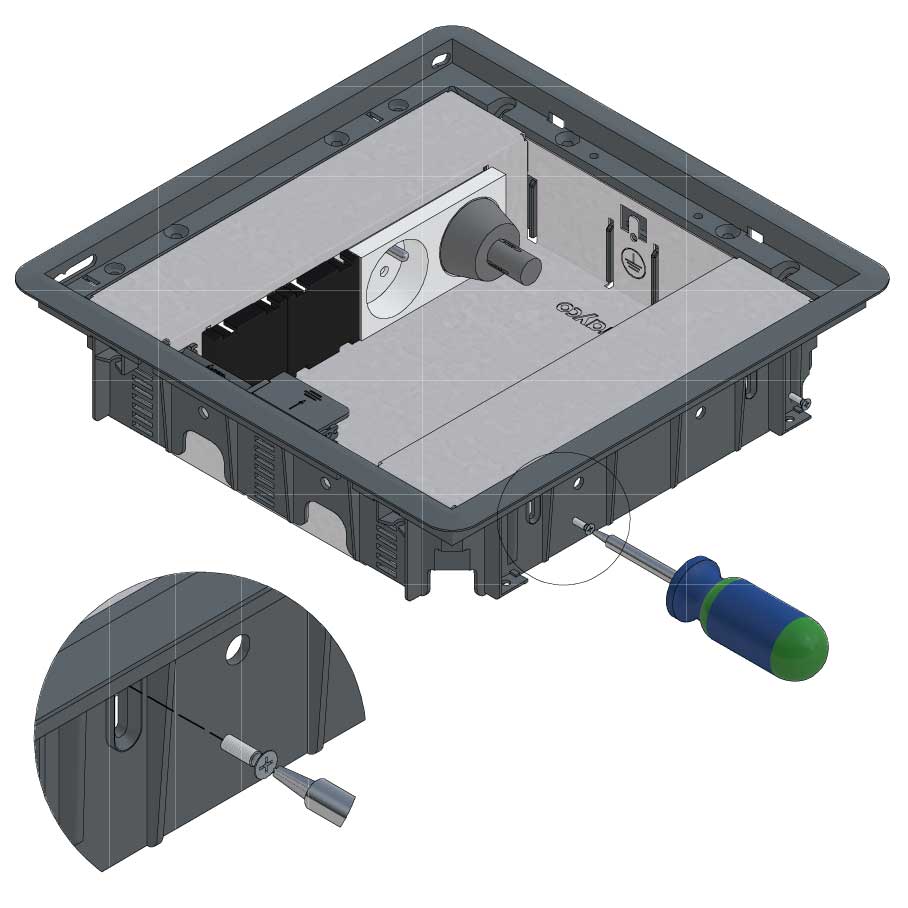

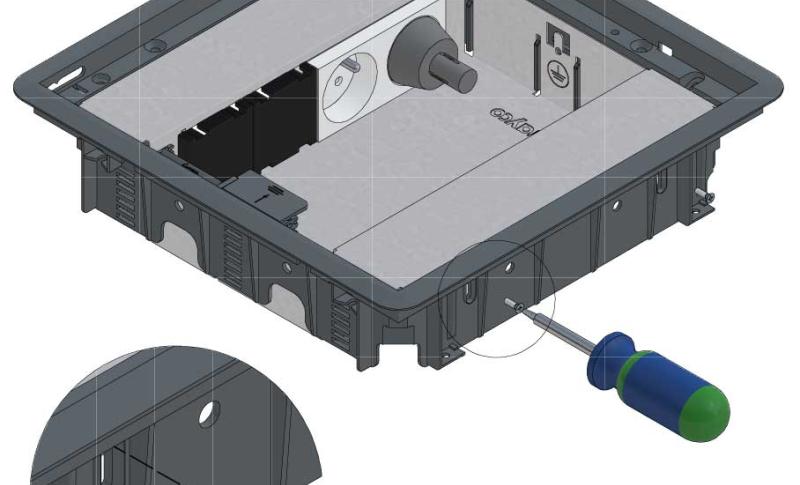

Technical info Assembly Accessories and options

	SKU	Article code	Finishing	Packaging
	15648	FS-AC-LOW-260-PG	PG	1	Default
EAN 5415129054851 Assembly Workload Norm Volgens EN50085 Safe workload - Max. torque - Additional information Product features Apparatus cup + strain relief (4x) + fixation screws (4x) Material: sendzimir Applications with low installation depths EN50085 compliant. For installation depths of at least 67mm. Can be used with click-outlets of type Module 45. Used with straight plug: all Module 45 appliance types applicable in all positions. Used with angled plug: types with vertical provision for the plug. Fitted with the required connections for equipotential bonding. Fitted with 4 strain relievers. Equipotential connection - EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Sendzimir galvanized (EN 10143) PG (pre-galvanized): Products made of Sendzimir (pre-galvanized) or continuous hot-dip galvanized steel sheet and coils are mostly used wherever limited chemical contamination is likely, for example, in of ces, industrial buildings, covered parking lots, etc. Characteristic of this steel type is that – prior to mechanical deformation – it is given a zinc coating by means of a continuous dipping process. This zinc coating is easily deformed. A cathodic action occurs on cut surfaces (up to 1.5mm) that protects against oxidation. First, the steel is chemical cleaned and roughened in order to achieve a good bond. After the dipping process, the surplus zinc is blown oﬀ and one obtains an extra passivating coat (an ultra-thin protective coat) to prevent oxidation of the zinc coating (white rust). The coating thickness is usually expressed in g/m2. The most deployed type of Sendzimir steel is Z 275 = 275g/m2 (weighed on both sides), this corresponds to 18-20 µm (micron). Sendzimir galvanized steel sourced from modern galvanizing lines has, in general, a uniform, shiny appearance. The previous, common ﬂ owery surface is scarcely seen these days. This eﬀect is obtained under the inﬂ uence of lead but has no eﬀ ect on the quality of the coating. The use of lead was banned due to the ever more stringent environmental standards.

EN50085 compliant. For installation depths of at least 67mm. Can be used with click-outlets of type Module 45. Used with straight plug: all Module 45 appliance types applicable in all positions. Used with angled plug: types with vertical provision for the plug. Fitted with the required connections for equipotential bonding. Fitted with 4 strain relievers.
