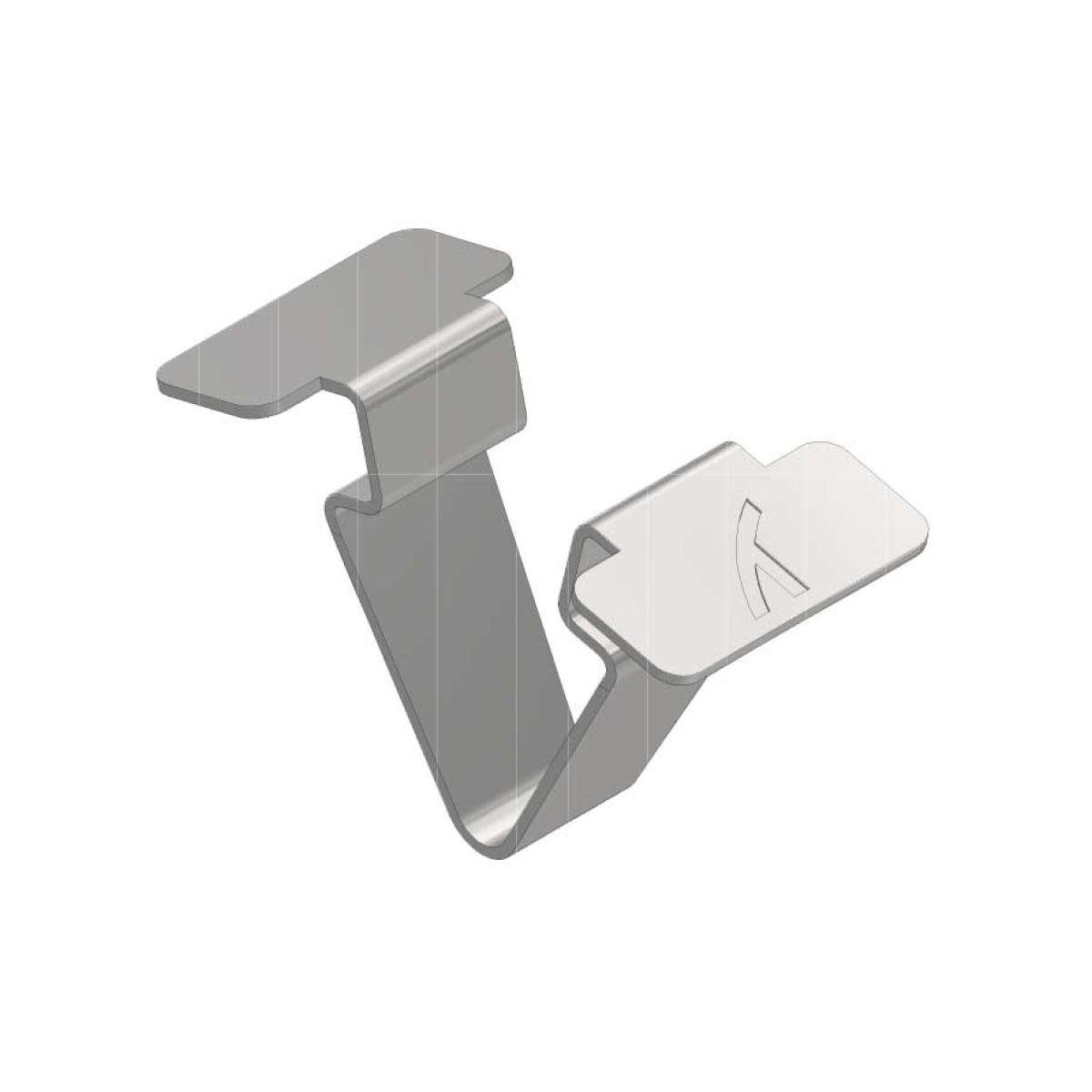

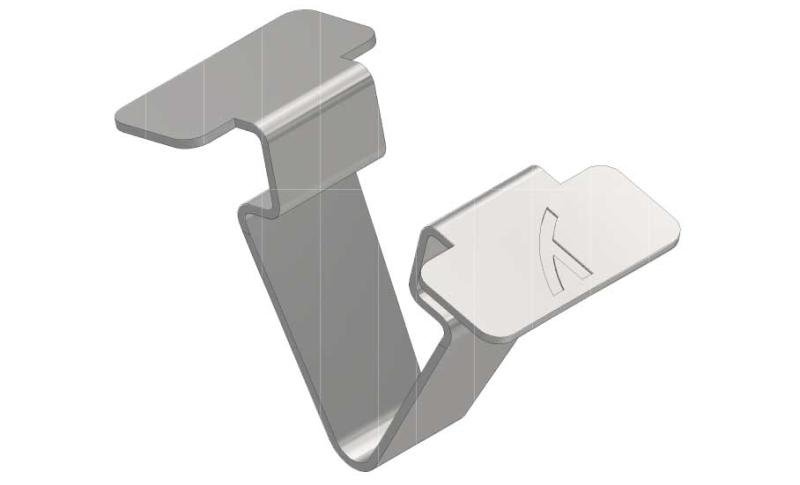

Fixation clamp

CT-PUSH

+ 2 photos

Fixation clamp

Name: Trayco
Address: Bedrijvenpark Coupure 5A, Oudenaarde, Oost-Vlaanderen, 9700, Belgium
Telephone: +32 (0)55 23 29 90

CT-PUSH

Requesting a quote

Technical Data Sheet

Catalog

Technical info Assembly Load diagram Accessories and options

	SKU	Article code	Finishing	Packaging
	15138	PUSH-SS	SS301	100	Default

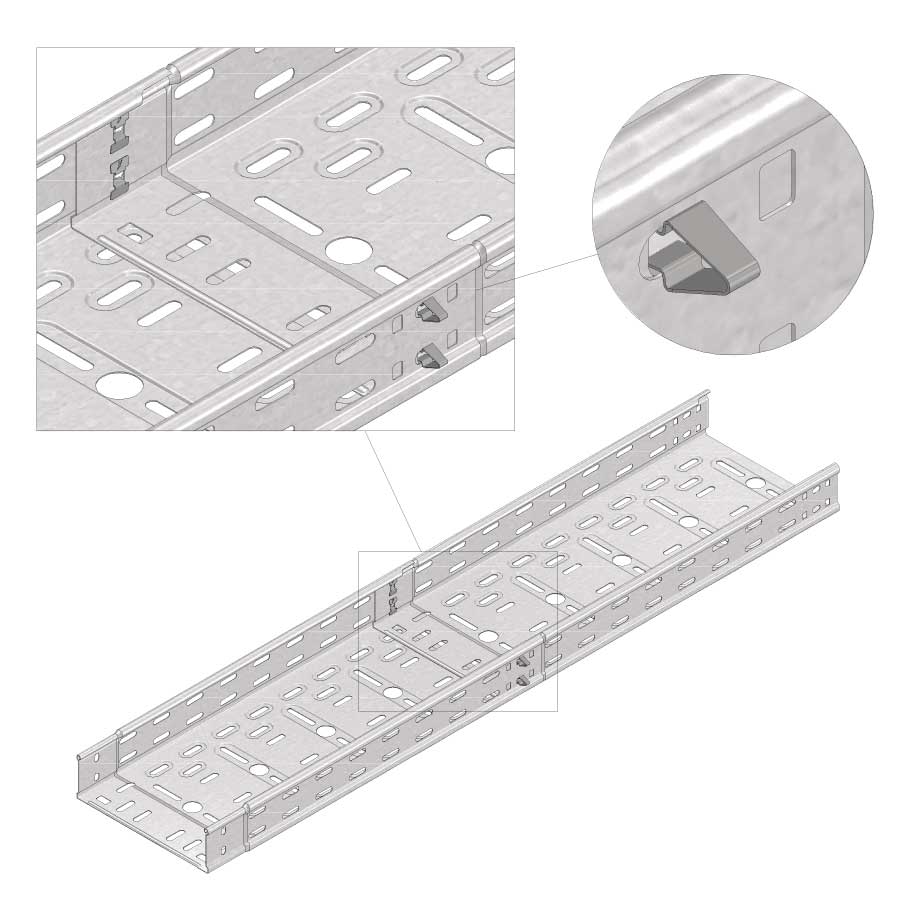

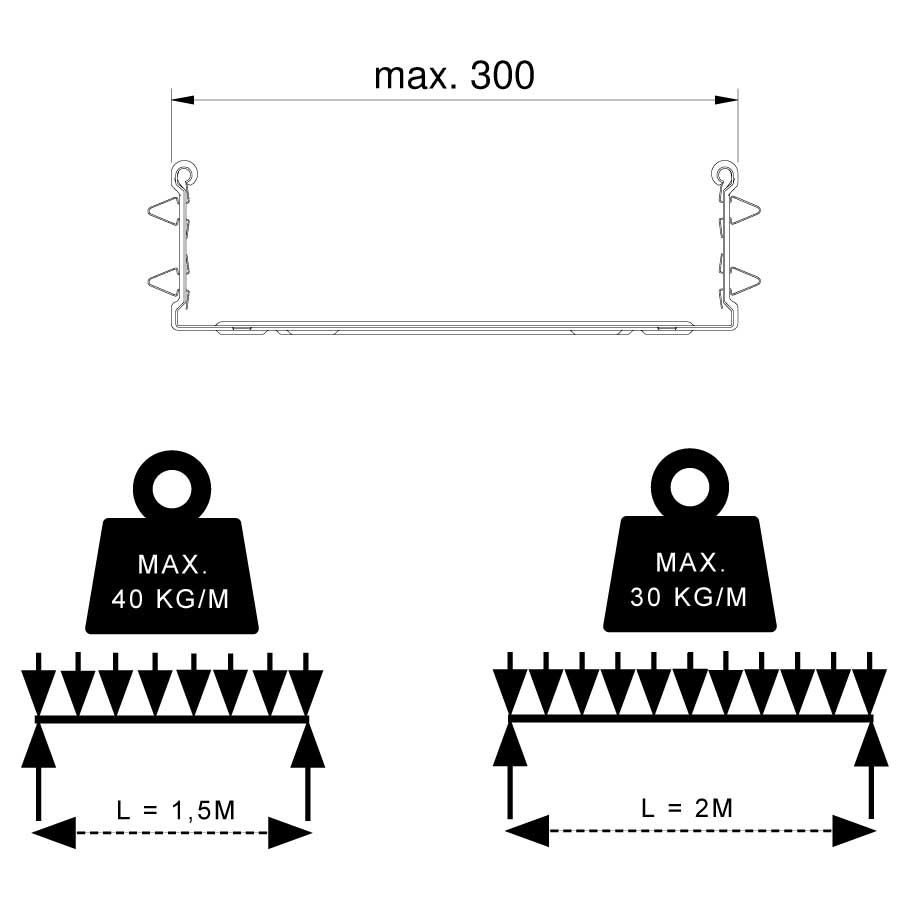

EAN 5415129049918 Assembly Workload Norm IEC61537 Safe workload - Max. torque - Load graph Additional information Product features Equipotential connection IEC61537 EC declaration of conformity We declare that our products are in conformity with: - the rules of the essential requirements of the EC directive: 2014/35/EU (low voltage) - the applicable national standards and technical specifications: CEI IEC 61537 Technical documentation is available at the manufacturer location. (On condition that the products are used in the manner intended and/or in accordance with the current installation standards and/or with the recommendations of the manufacturer.) Finishing Stainless steel (1.4310) AISI 301 Stainless steel is also known as inox steel or inox from the French inoxydable. The AISI 300 Series represents by far the largest group. The various types within this alloy group are derived from the traditional 18/8 composition (18% Cr/8% Ni). The structure even consists at ambient temperature, and sometimes far below, entirely of austenite, which is due to the presence of nickel in a ratio of about 8%. When it has reached a fully austenitic structure, the material is not ferromagnetic and offers good corrosion resistant. Type 301 is a stainless steel with unusually high uniform elongation when correct composition balance and deformation conditions are achieved. It is suitable for extreme cold deformation. As a result of moderate to extreme cold deformation, its tensile strength increases significantly while retaining reasonable toughness. It is often used in the cold-rolled or cold-drawn state. Applications include counter tops, hubcaps, architecture and construction elements, high-strength springs, all kinds of clips, banisters, balustrades, etc.
